Frame
SMOOTHWALL™ Carbon | Integrated Display | LC2R Suspension System | Threaded BB | RIDE-4™ Adjustable Geometry + Suspension Rate | 160mm Travel | SMOOTHWALL™ Carbon Rear Triangle

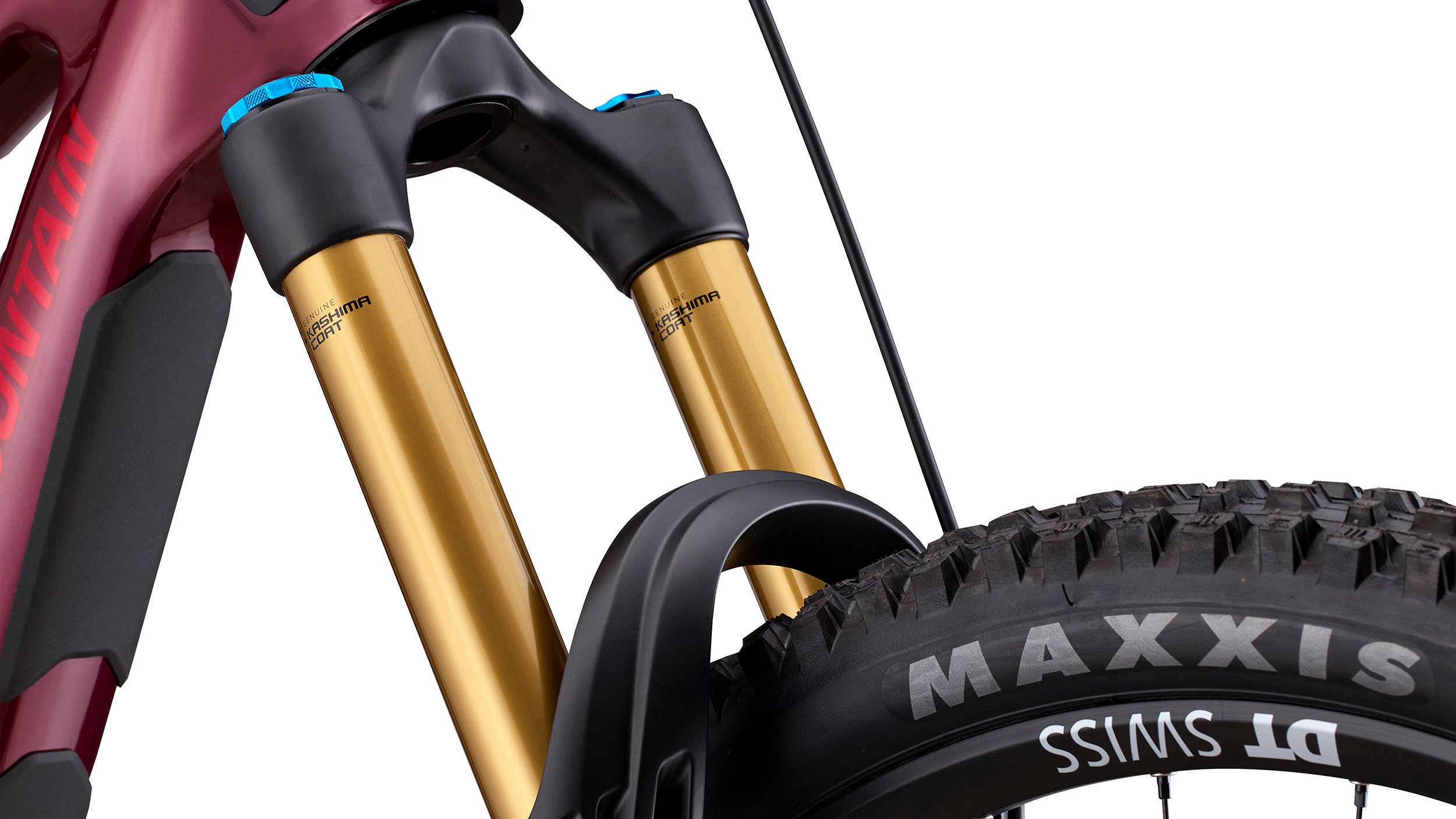

Fork
Fox 38 Float EVOL GRIP X2 Factory Series 170mm | 27.5 = 37mm Offset | 29 = 44mm Offset
Front Travel
170

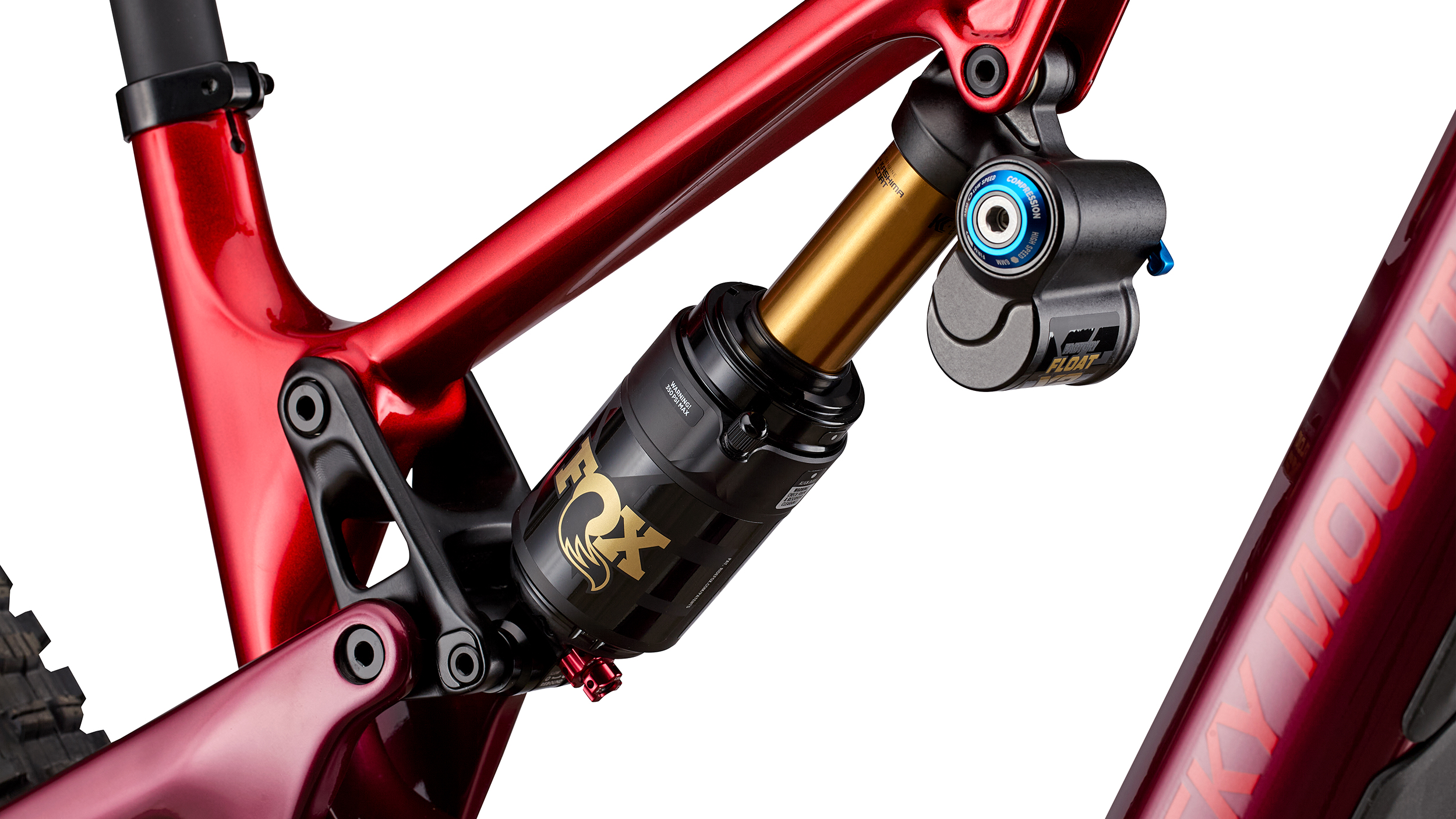

Shock
Fox Float X2 Factory | Sealed Bearing Eyelet | 25x8mm F Hardware | SM = 210 x 55mm | MD - LG - XL = 230 x 65mm | Size-Specific tune in FAQ
Rear Travel
160
Headset
FSA Orbit NO.85 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race
Stem
Rocky Mountain 35 AM | 0° Rise | All Sizes = 40mm

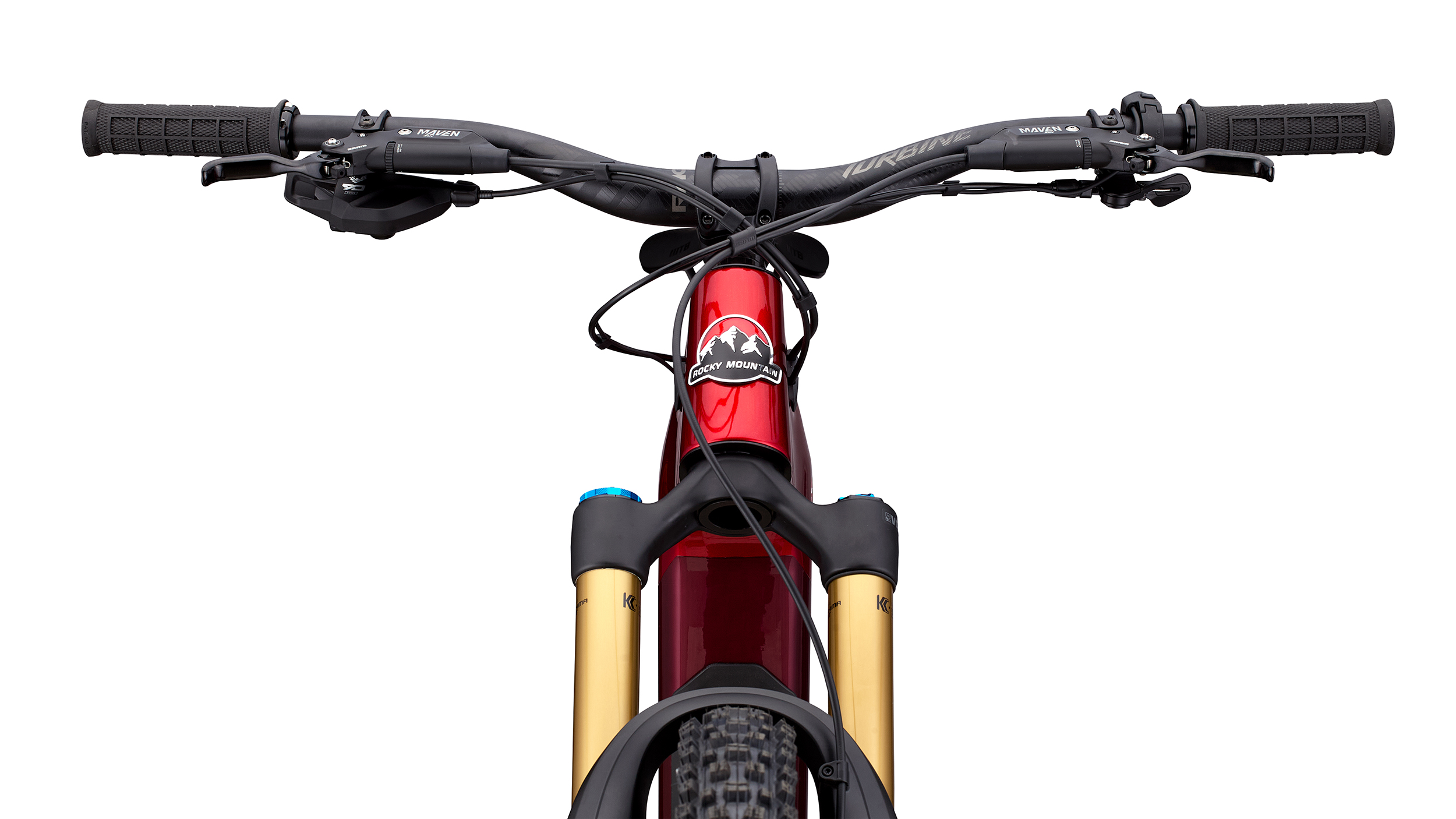

Handlebar
Race Face Turbine | 780mm Width | 40mm Rise | 8° Backsweep | 5° Upsweep | 35mm Clamp
Grips
ODI Elite Pro Lock On

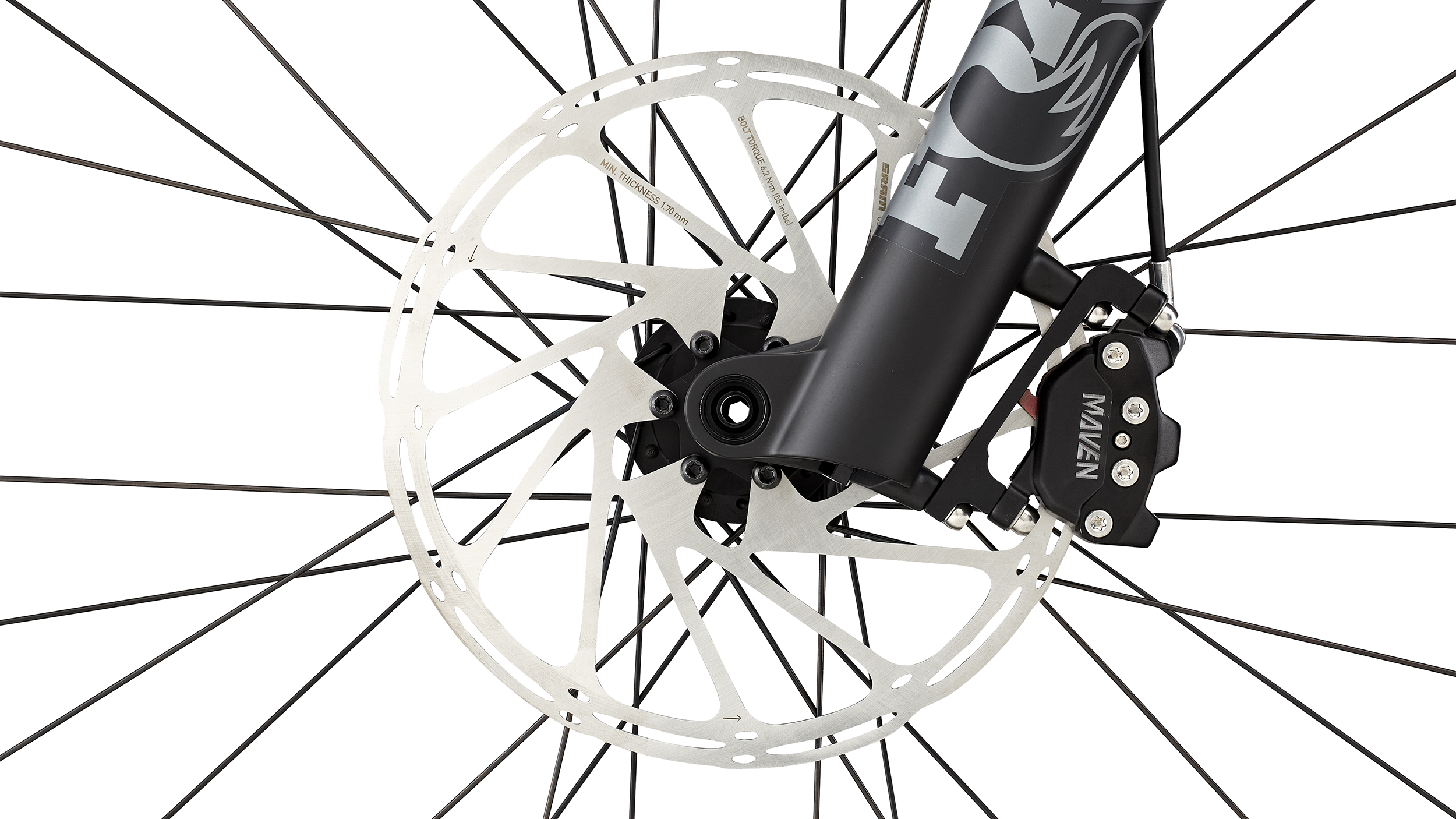

Brakes
Sram Maven Silver Stealth 4 Piston | Metal Pads
Shifters
Sram Eagle 90 Transmission Single Click

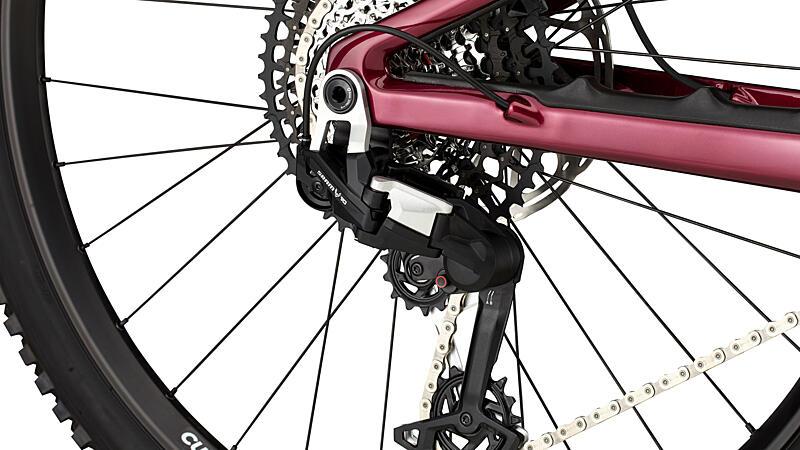

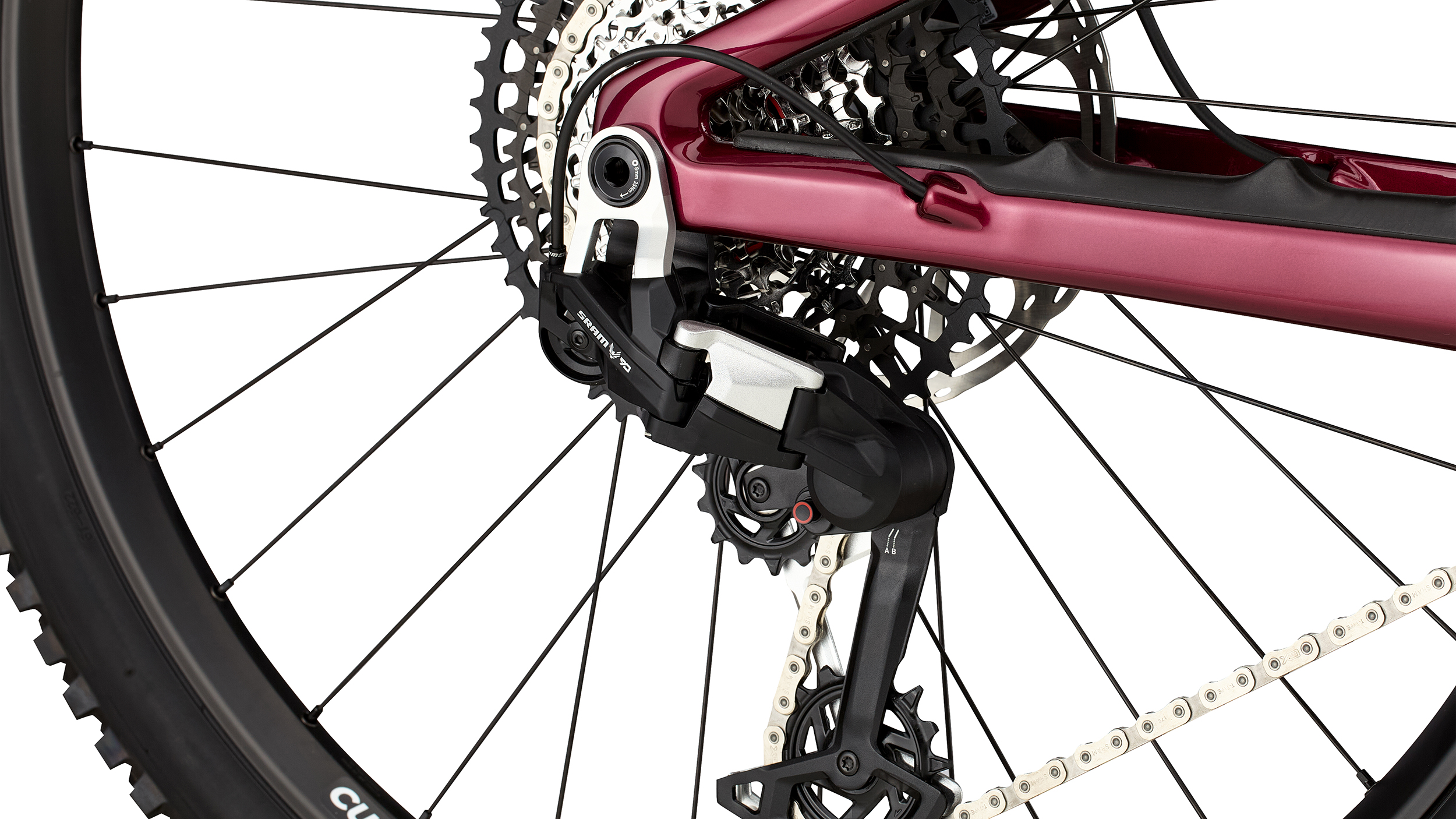

Rear Derailleur
Sram Eagle 90 Transmission
Cranks & Chainring
Race Face Aeffect Cinch | 34T Transmission Ring | 24mm Spindle | SM - XL = 165mm
Bottom Bracket
Race Face BSA 73 24mm
Cassette
Sram GX Eagle Transmission 10-52T
Chain
Sram GX Eagle Transmission
Tires
F: Maxxis Assegai 2.5 WT 3C MaxxGrip DD Tubeless Ready | R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready
Seatpost
OneUp V3 Dropper 30.9mm | SM = 150mm | MD = 180mm | LG = 210mm | XL = 240mm
Saddle
WTB Solano Fusion Form 142 | Cromoly Rails

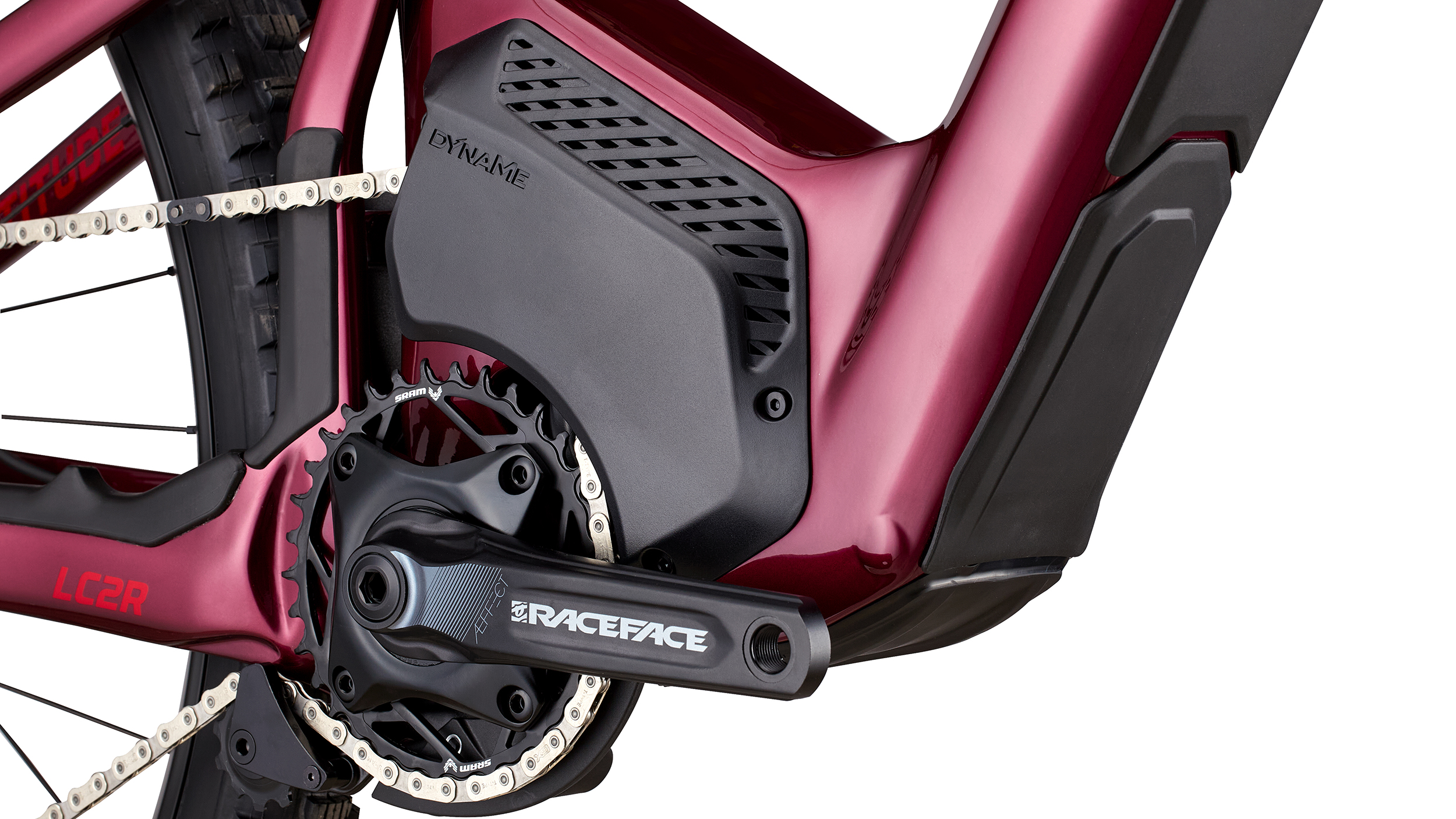

Drive System
Dyname S4 Pro Mountain Bike Drive | 250w Nominal Power | 1000W Max Power | 110Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada
Battery
720 Wh Removable Integrated Li-Ion | 100% Charged in 3:55 (4A) / 7:35 (2A) | 80% Charged in 2:55 (4A) / 6:05 (2A)
Display
Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration
Charger
Rocky Mountain Powerplay FAST Charger | 4A | 48V | Higo Deep Socket Connector
